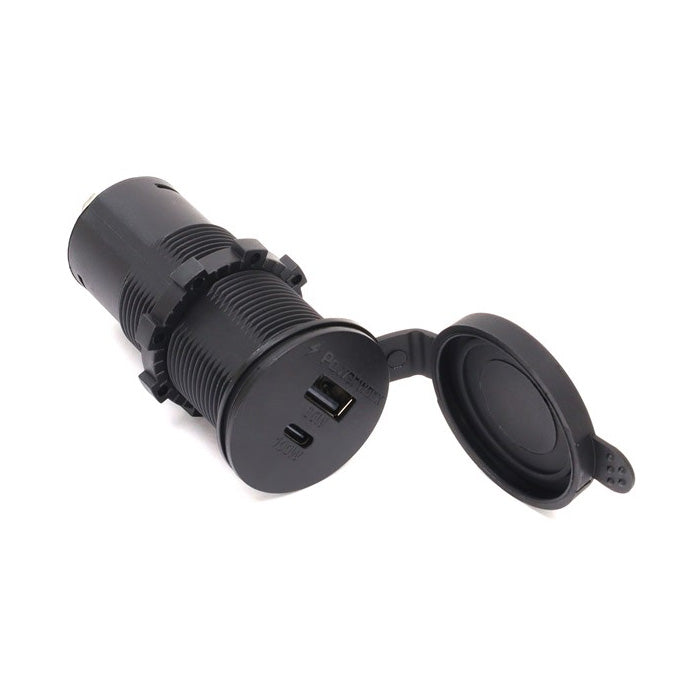

Powerwerx Panel Mount 100W Combo USB-C QC5 & USB-A 36W QC3 Fast Device Charger

• Fast Device Charging

• 100W USB-C port

• 36W USB-A port

• 12v or 24v system compatible

• All black body

• No annoying LED lights to keep you up at night

Ideal for laptops, tablets, smartphones, and other USB-C devices. Durable, compact design delivers reliable, high-speed power for vehicles, boats, RVs, and fixed installations.

Installation

1. Remove existing panel mount outlet and gently pull out the old charger to gain access to the wires.

2. One wire at a time, remove the red wire and attach it to the + terminal on the new charging outlet, then the Black wire to the - terminal.

3. Insert the new charging outlet into the hole, and reattach the mounting trim.

Specifications

Operating Voltage
9–31V DC

QC5 Output
Up to 100W (with input of 12.0 to 31.0V)

Up to 65W (with input of 9.0 to 11.9V)

QC3.0 Output
Up to 36W (5V/3A, 9V/2A, 12V/3A, dynamic voltage adjustment supported)

Fast Charging Compatibility
Power Delivery (PD 3.1 / PD 3.0 with PPS) – Supports the latest PD protocols for optimized, efficient charging over USB-C (up to 100W). Voltage Range: 5V / 9V / 12V / 15V / 20V.

BC1.2 & Apple 2.4A – Standard USB charging, compatible with most iPhones and legacy devices.

Qualcomm Quick Charge (QC4.0+ / QC3.0 / QC2.0) – Fast charging support for many Android devices. USB-C port supports QC4.0+ while the USB-A port supports QC3.0/2.0 (up to 18W).

Samsung AFC – Adaptive Fast Charging for Samsung Galaxy devices.

Huawei FCP / SCP / HVSCP – Supports Huawei Fast Charging protocols, including SuperCharge and High Voltage SCP.

MediaTek Pump Express (PE1.0 / PE2.0) – Fast charging for MediaTek-powered phones.

Terminals
0.25-inch quick-disconnect blade terminals (also called tab terminals, F2 battery terminals, or Faston-type connectors).

Panel Mount Length
3.25 in (not including wiring or terminals)

Mounting
Fits 1-1/8" hole size

Operating Temperature Range
-4 to +140°F (-20 to +60 °C)

Over Voltage Protection
Yes

Over Current Protection
Yes

Over Temperature Protection
Yes

Short Circuit Protection
Yes

Reverse Polarity Protection
Yes

Includes
Protective dust cap cover and rear mounting/locking nut

Recommend Installation
Use IFH-12-02 inline blade fuse holder with 15A fuse on 12/24V input
